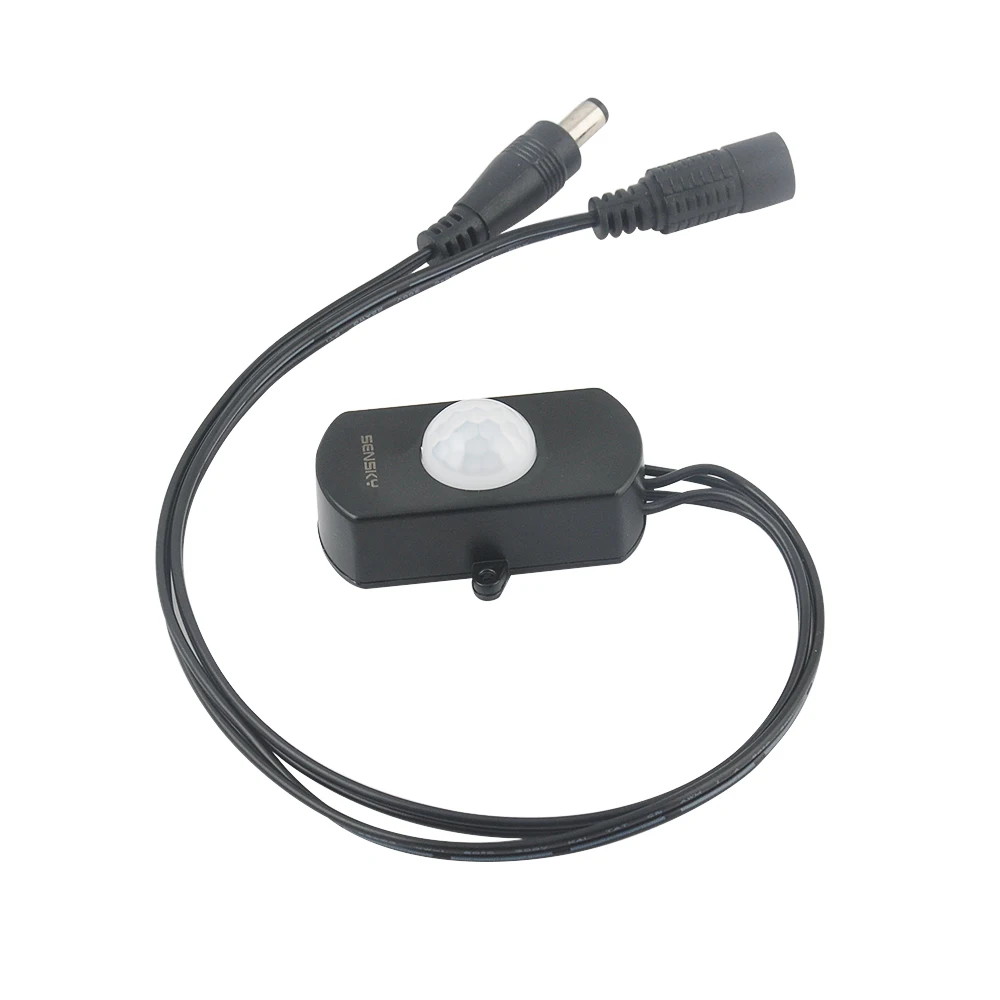

Sensky LED Strip Automatic DC 12V 24V 3A PIR Body Infrared Motion Detector Time Adjustable Small Sensor Switch for DIY
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
Sensky Mini DC12V 24V PIR Body Infrared Motion Sensor Photosensitive Switch LED Strip Automatic Wave sensory Free Shipping
Photosensitive model has Photoreceptor function.In the daytime or have a light the sensor will control the Lamp.conventional version without this feature.
- Motion sensor is device can detect human movement by detecting Infrared ray emitted by human body.
- Motion sensor BS010WL with plastic housing, good appearence, small size, easy to instal.
- Motion sensor working voltage is DC 5V~25V,output voltage=input. Very good for LED strip, LED lighting products, Security System, automatic sensory device and more.
|Description||Passive Infrared Sensor|
|Operating voltage||DC 5V~25V|
|Output voltage||Equal to input voltage|
|Static power loss||≤ 50 uA|
|Delay time|| Default setting 15sec
(2~360 Seconds is adjustable)
|Light sensitivity|| default setting 20lux,
|Detecting range||≤ 110 degrees cone angle, ≤5M-7M|
|Trigger way||continuous triggering|
|Blockade time:||0 seconds|
Explanation of some parameter
l .Delay time: After detecting human being movement, the module will output a signal
(triggering), delay time means the time of output last, from 1second-30seconds.
For example, if module used for lighting, the delay time is 20s, after detecting human
movement the light will keep on lighting for 20s.
2.Blockade time:After delay time over, there will be a time period of blockade, in this
period, any movement can not trigger the module, default setting is 0 sec.
Clock-wise reduce the delay time and light sensor value
Anticlockwise increase the delay time and light sensor value
Functions and Features
1. Automatic Induction: When people enter into the range of induction, it will output high
level; when people leave, it will turn off high level and output low level with delay.
2. Light sensor control (it is optional, default setting: no):It will trigger only in the
3. Triggering in two ways:
1. Don’t exposed to direct sun light or lighting, big wind, near a heater or air condition.
2. Don’t fix it at a place where there are obstructing material (eg. Glass, dense clothes)
which IR cannot get though.
3. Don’t fix it in strong shock or vibration environment.
4.The first time use the PIR Motion detector module, it need about one minutes
initialization time, during this time, the signal triggered by the module not stable, after
one minute, module will be normal.
5. The sensitivity for left-right direction is better than up-down direction, so please make
sure the installation direction is left-right.
