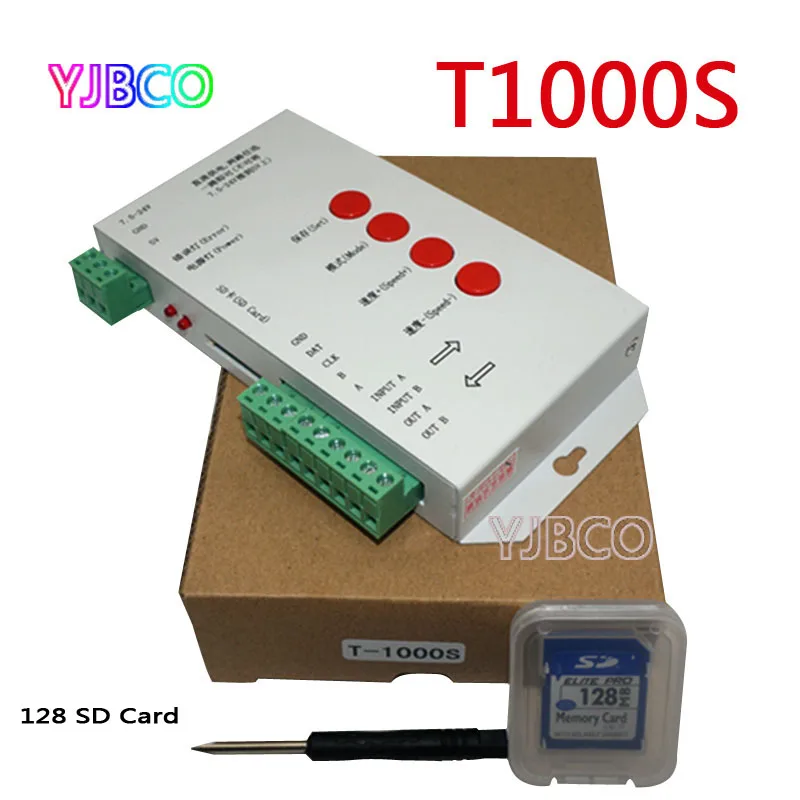

LED controller T1000S SD Card Pixels Controller ,for WS2801 WS2811 WS2812B LPD6803 LED 2048 DC5~24V

LED controller T1000S SD Card Pixels Controller for WS2801 WS2811 WS2812B LPD6803 LED 2048 DC5 24V
Click to see details
60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 33.23 / piece
Sale price:  $ 20.27 / piece



45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

T1000S SD Card WS2801 WS2811 WS2812B LPD6803 LED 2048 Pixels Controller DC5~24V T-1000S RGB Controller

Description:
Memory card:

type:SD card

Capacity:128MB-2GB

Store file:*.led

Physical parameters:

Working temperature :-30-85degree celsius

Working voltage:DC5V / DC7.5-24V

Working power:2W

Weight:0.3kg

Size:L165mm×W80mm×H30mm

Signal port:3pin connect port

T-1000S System features
1.32-65536 Gray,Support software Gamma correction.

2.Support point, line, surface, rules and special-shaped handle.

3.Single-port output,can support 2048 pixels.

4.Multiple controllers can be cascaded together and work synchronous,

play back content stored in the SD card.

5.Compatible with single line or double line chips.

NOTE:

When T1000S controller load less than 512 pixels the frame rate can reach 30fps.

When T-1000s control more than 512 pixels the frame rate will slow down automatically.

Support IC (one IC symbolize a pixel point )

Definition of buttons

Features:

1. 256 Gray,Gamma correction processing software.
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card
5. T-1000C store a maximum of 16 documents
Note: The model T-1000S with one port output, When it control 512 pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically

Connection diagram:

Regulatory function button:

System architecture diagram:

Specific parameters:
Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led
Physical parameters:
. Weight:0.2kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 Degree
. Volgate: DC5V / DC7.5-24V
. Power:3W

Note:
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as “FAT” format.

NOTE:For the TTL(SPI) signal, the controller signal ground must connect to

the LED lamp ground directly.

T1000S Controller* 1piece

SD Card* 1piece
