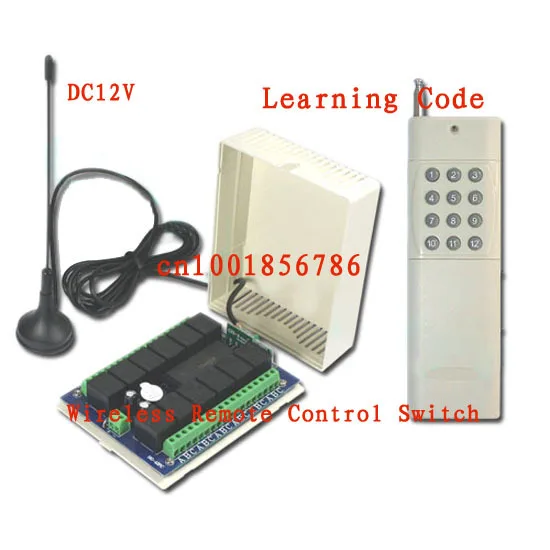

Free shipping 3000M 12V 12CH (channel) Relay Receiver & Transmitter for RFWireless Remote Control Switch System With Antenna
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
· Wireless control, easy to install
· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC180~250V.
· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
· This switch can learn different coding remote controls (such as 2262,1527 ect.)
· One/several transmitters can control one/several receivers simultaneously.
· If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won’t affect each other.
· Transmitting Frequency: 315MHz / 433MHz
· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.
· Model No.: AK-RK12S-12
· Channel: 12CH
Operating Voltage: DC12V
Operating Type:Jog /Momentary/Non-Latched(Press and hold->On,Release->Off)
Interlock /Latched(Press -> On; Press other button -> Off)
· Coding Type: learning code
· Maximum Working Current: 10A
· Output Mode: Without voltage output(also called Contact output)
· Step-down approach: resistance-capacitance(RC)
· Model No.:AK-12-12
· Buttons: 12 Buttons
· Working Voltage:DC12V (12V 23A Battery x1)
· Operating frequency :315/433MHz
· Remote Control Distance: 200m(Distance open without interference theoretical distance, the practical application of the use of environmental disturbances decrease, estimated in accordance with the label 10% -30%)
· Encode: Fixed code by soldering
Channel: 12 CH channel
output/working way : jog , inter-lock . self -lock (can be change on yourself ) Jog—–press one button is “ON” . loosen your finger on the same button is”OFF”.need one channel switch and one buttons remote control ) Self -lock—— press one button for one time is “ON” .press the same button again is “OFF” .(need one channel switch and one buttons remote control Inter-lock ——- press one button is”ON”,press another button is “OFF” . (need one channelswitch and 2 buttons remote control
here is in set , we have make it work together ,so you don’t have to care about what frequency are they ) please note that : it is the control system in set here .you just can choose jog or self-lock working/output way here .for there are 12CH and 12buttons . Decode: Learning code (it can learn serveral remote control and the working way can sbe changed ) How to learn changed the output /working way
About Learning and clearing Method:
A. jog/signal non-lock ——press the No.1 button to learn
B.self-lock press the No. 3 button to learn (each channel is independent .they won’t interfere with each other
C inter-lock ——press the No.2 button to learn D . 1-4 button is self-lock .5-12 button is inter-lock .—-press the No.8 button to learn
E. 1-6 button is jog,7-12 button is inter-lock,—press the NO.4 button to learn F. 1-6 button is jog,7-12 button is self-lock—press the NO.5 button to learn. G.1-4 button is jog,5-12 button is inter-lock—-press No.6 button to learn H.1-4 button is jog,5-12 button is self-lock,—-press NO.7 button to learn
How to match
1,press the learning the key on the receiver about 2 seconds ,
you will hear sound” BIBI” it said into the learning state
2, press the remote control function keys (keys 1-8) – you will hear BIBIBI sound..
it means success in learning. Valid signal is not received within 10 seconds
automatically exit learning
How to remove code
Press the receiver module learning button about 8 seconds until BI BI BI BI BI BI continuous ringing six times,
It means the stored information has been successfully cleared
· 1 x Receiver:AK-RK12S-12 (with cover)
· 1 x Transmitter: AK-12-12 (with battery)
