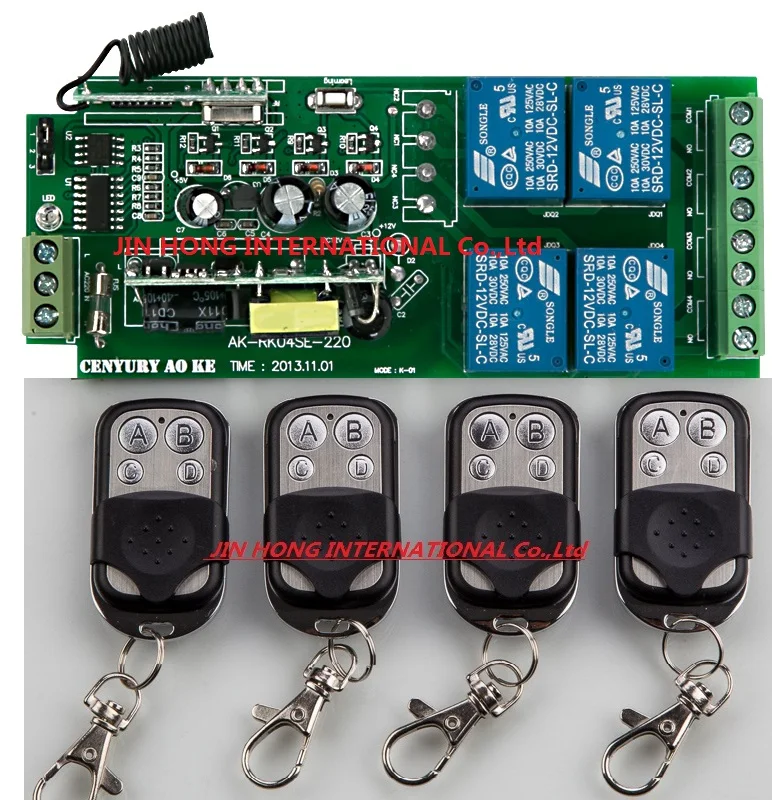

85v~250V 4CH RF Wireless Remote Control Relay Switch Security System Garage Doors, Electric Doors & 1 x Receiver 4 x Transmitter
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
85v~250V 4CH RF Wireless Remote Control Relay Switch Security System Garage Doors, Electric Doors & 1 x Receiver 4 x Transmitt free shipping
· Wireless control, easy to install
· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC220V,AC85V-260V OR DC12V..
· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
· This switch can learn different coding remote controls (such as 2262,1527 ect.)
· One/several transmitters can control one/several receivers simultaneously.
· If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won’t affect each other.
· Operating Frequency: 315MHz / 433MHz
· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.
· Model No.:RK04SE-220
· Channel: 4 CH
Operating Type:Jog /Momentary/Non-Latched(Press and hold->On,Release->Off)
Interlock /Latched(Press -> On; Press other button -> Off)
· Coding Type: learning code
· Maximum Working Current: 10A
· Output Mode: Without voltage output(also called Contact output)
· Step-down approach: resistance-capacitance(RC)
· size: 107*48*21mm
About Working way/ output Way:
· Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.
Momentary/ Jog–Press and hold -> On; Release -> Off.
Toggle/ Self-lock–Press -> On; Press again -> Off·
Latched/ Interlock–Press -> On; Press other button -> Off.
· Model No.:HD040
· Buttons: 4 Buttons
· Working Voltage:DC12V( DC12V 27A Battery x1 )
· Operating frequency :315/433MHz
· Remote Control Distance: 20-100m
· Encode: Fixed code by soldering and learning code
About Learning and clearing Method:
Learning:· Press the learning key, it means the controller putting in the learning state when the indicator OFF, then please press any buttons of the remote control to transmit signals, the indicator will flash for 3 times,which means successfully studied.
· After pressing any buttons of the remote control to transmit signal, the indicator didn’t flash, 10 seconds later it still recovers to normally on, it means study unsuccessfully.
Clearning: Hold press learning button about 8 seconds,,indicator from OFF to ON,then press remote ,receiver did not work ,it means clearning code successful.
· The default setting of output way is SELF-LOCK; If you need other output way can leave a message to change it for you before the delivery.
· Here is the 4 Channel switch and 4-button remote control .you can choose the working way as you need.
· The theoretical distance is 20– 100m, which shall be operated in an open ground; no barriers and no any interference. However, in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance cannot reach 100m. If you need longer range, please choose other series of remote control, such as 1000m/3000ft; or you can add the External Extend Antenna or Transponder on the receiver to extend the range.
· 1 x Receiver:RK04SE-220 (with cover)
· 4 x Transmitter:(with battery)
