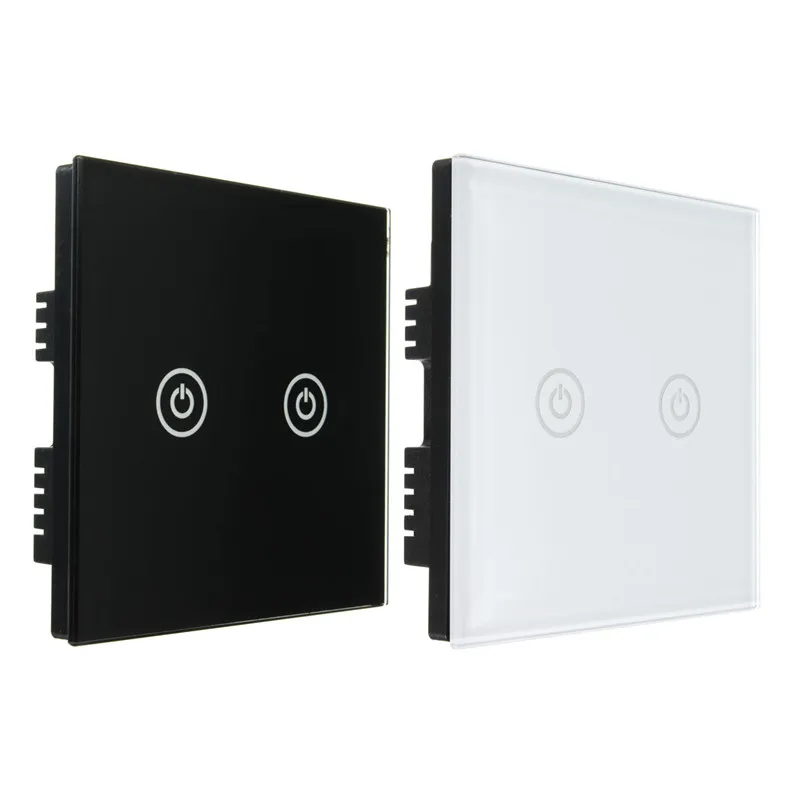

1 Way 2 Gang Tempered Glass Control Touch Screen Light Home Wall Switch Panel AC100-250V Best Price
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
1.Fashion Design, Tempered Glass Panel, Simple Operation;
2.Super Efficiency Designed;
3.Functional State Feedback;
4.Ultrafast Reflection, Smaller Than 50 Milliseconds;
5.Support Mode Control (with the coordination of related terminals);
6.Adopt The Single Pole Double Throw Mode;
7.Over-length Life Span; (Adopt high power SCR)
8. Anti-shocked Designed;
10.It Is Easily Installed and can replace an switch In Your Home Using Your Existing Wiring.
Product Name: 86 Mode Touch Control Panel
Type: 1 Way 2 Gang
Color: Black, White
Size: 83 x 83 x 32mm
Panel Material: High Grade Tempered Glass
Shell Material: Inflaming Retarding ABS (Acrylonitrile Butadiene Styrene Copolymers)
Voltage: 160-250V AC / 50Hz-60Hz
Current: Stable Current ≤2A, Transient Current≤5A (Use with 16A TRIAC)
Power: Unit Channel Load≤200W （Single Channel）
Power consumption: less than 0.05W of static power consumption
Temperature: -20 ~ 70 ℃
Humidity: 10% to 90%
Minimum load: single fire switches connected total load power ≥5W
1x 86 Mode Touch Control Panel
1x User Manual
2x M4 25 Screws
Switch Using Instruction:
1.Hand Mode Control:
-Switch ON/OFF on the glass panel. When the switch is ON, the pilot light changes to red; when it is OFF, the pilot light changes to blue. Everytime turning ON/OFF will the boomer make a sound of “Dee” to confirm the operation succeed.
1.Do not install when charged;
2.Rated working voltage: 110-220V AC, 50Hz-60Hz;
3.Strictly follow the instructions to install;
4.The total load of the switch should not over 600W (3 switches);
5.The line box should be “86” mode and the size should not be smaller than 75*75*50mm;
6.If the first charging test is going under the condition that without the glass panel. Finished the testing, first cut off the electricity, fix the switch and cover the glass panel and then recharge it;
7.The switch is not adapt to the old inductance day lamps;
8.Please do not install the switch in the damp ares avoiding the leakage and shock from electricity;
9.Please do not install multiple touch switches together (better no more than three switches), which escaping interference.
User Pairing Instruction:
On charged and turn off the certain switch
Press the touch point of a arbitrarily switch for 5 seconds (Light will be on at the time), the boomer will make a sound of “Dee” and please keep pressing for 5 more seconds and then the boomer will make a sound of “Dee” to show the multiway switch is paired to the remote control.
Press the key you prefer on the remote control to pair the “ON” key on one multiway switch(e.g. “C” or “3”), the boomer will make a sound of “Dee” to show its succeeded in pairing;
Press the key you prefer on the remote control to pair the “OFF” key (e.g. “D” or “4”), the boomer will make a sound of “Dee” to show its succeeded in pairing and finish the operation. (The ON/OFF key can pair with a same key on the remote control as you require).
